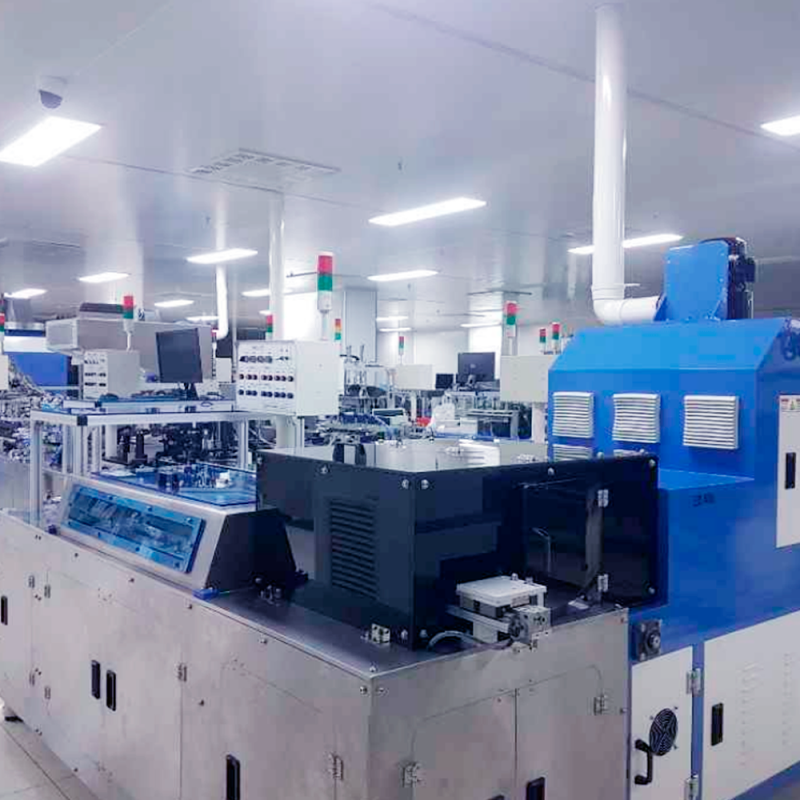

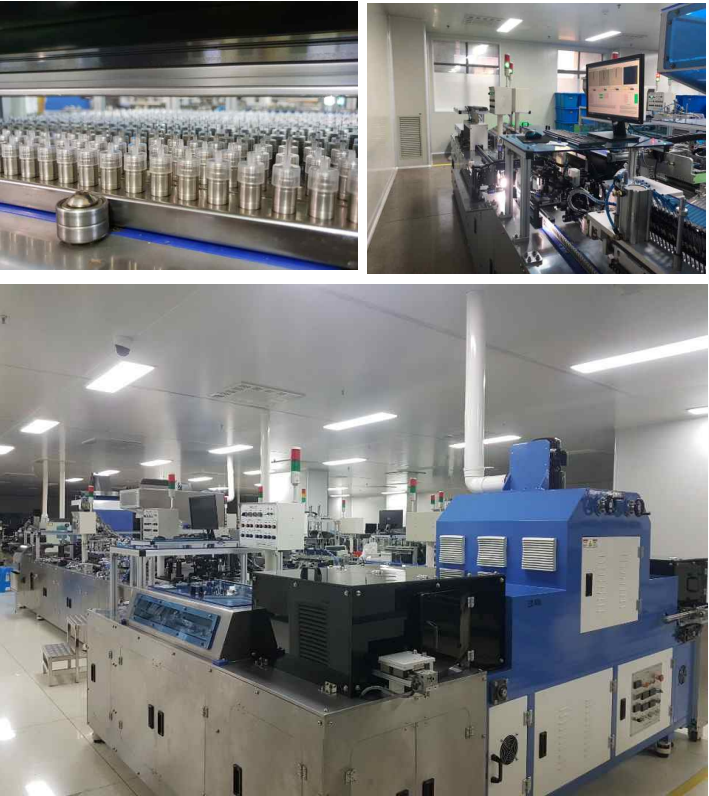

Pen Needle Assembly Machine

This machine is for Insulin Pen needle Assembly and highly-qualified machine with stable productivity.

We produce mold paper punching cutting system and it makes clean cut and exact adhesion position.

It also has good durability. We produce “Safety pen needle assembly machine”, “Inner box packing machine” and “3sides Packing machine” as well.

Vision Camera Inspection : Point check 1unit , Upside down needle check 3units(Bending) ,

Bonding check 1unit, nspection after assembly cap 2units and Paper adhesion inspection 2units

- (DIMENSION) : 9,000(L) x 9,600(W) x 1,800(H)

 - (CAPACITY) : 23,000~25,000 EA/HR

- (CONTROL SPEC) : L.S PLC

- (ELECTRIC POWER) : AC 3P x 380V x 22 KW x50/60HZ

- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM

- (FRAME MATERIAL) : AL PROFILE , SUS 304

- (NO.OF WAKER) : 2-3 PERSON
