Automated syringe production and packaging equipment
Syringe Printing Machine
Syringe Assembly Machine
Blister Packing + Feeding Machine

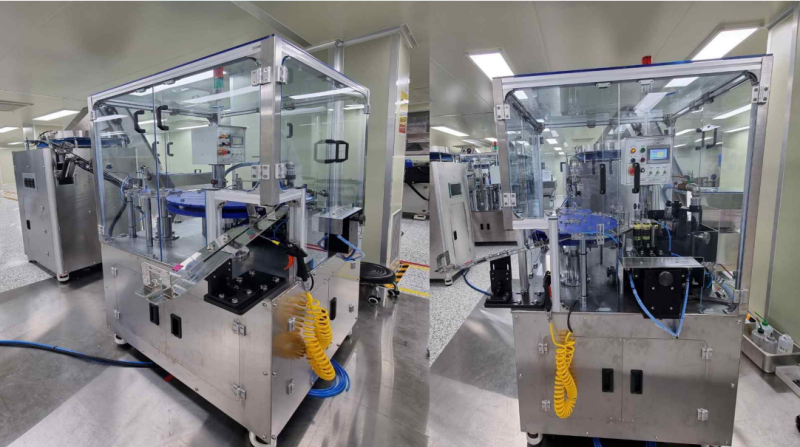

Syringe Printing Machine
This machine has Normal type and Detail type as printing
scale mark on the Syringe.
It can be in-line combined with
Syringe Assembly Equipment.
- (DIMENSION) : 2,700(L) x 2,800(W) x 2,200(H)
- (WEIGHT) : ABOUT 1,500 KGS
- (CONTROL SPEC) : PLC TYPE
- (ELECTRIC POWER) : AC 1Px220Vx5KWx50/60HZ
- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM
- (FRAME MATERIAL) : AL PROFILE , SUS 304
- (NO.OF WAKER) : 1 PERSON

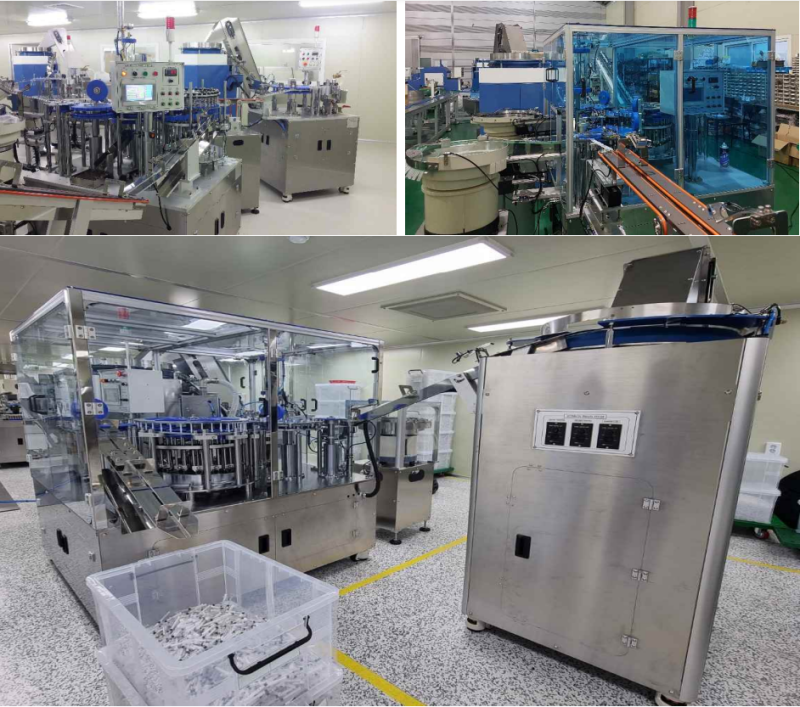

Syringe Assembly Machine
This machine is for assembly Syringe Plunger, Piston, Gasket
and needle. It can be in-line combined with Printing and
Packing machine.
We can make on-position injection because
of our developed silicone injection system.
- (DIMENSION) : 5,000(L) x 2,800(W) x 2,200(H)
- (WEIGHT) : ABOUT 2,500 KGS
- (CONTROL SPEC) : PLC TYPE
- (ELECTRIC POWER) : AC 1Px220Vx8KWx50/60HZ
- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM
- (FRAME MATERIAL) : AL PROFILE , SUS 304
- (NO.OF WAKER) : 1 PERSON

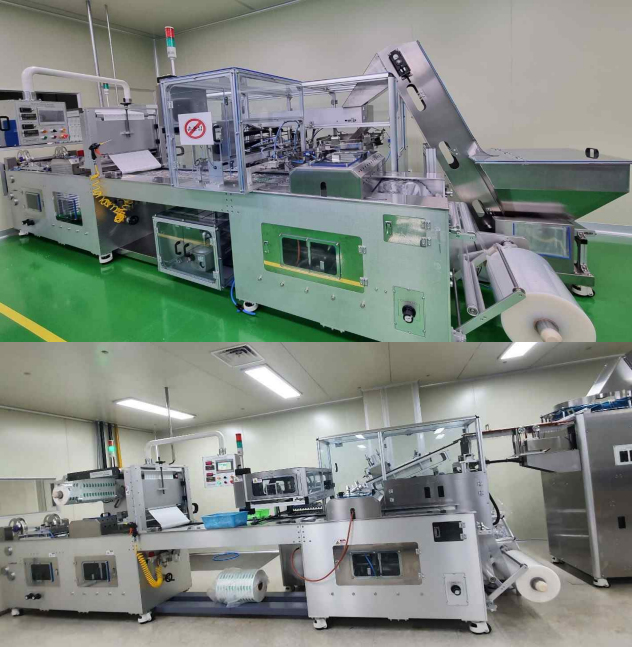

Blister Packing + Feeding Machine
This machine is for automatic syringe Feeding and Packing machine.
It can be in-line combined as Printing,
Assembly, Feeding, Packing
and in-boxing equipment.
Options : Inkjet Print, Vision inspection System.
- (DIMENSION) : 6,600(L) x 2,000(W) x 1,700(H)
- (Capacity) : 13-17cut/Min
- (MAIN MOTOR) : 三菱伺服 0.75 kw(MITSUBISHI)
- (CONTROL SPEC) : L.S PLC
- (ELECTRIC POWER) : AC 1P x 220V x 10 KW x50/60HZ
- (PNEUMATIC PRESSURE) : ABOUT 6KG/CM
- (FRAME MATERIAL) : AL PROFILE , SUS 304
- (NO.OF WAKER) : 1 PERSON
